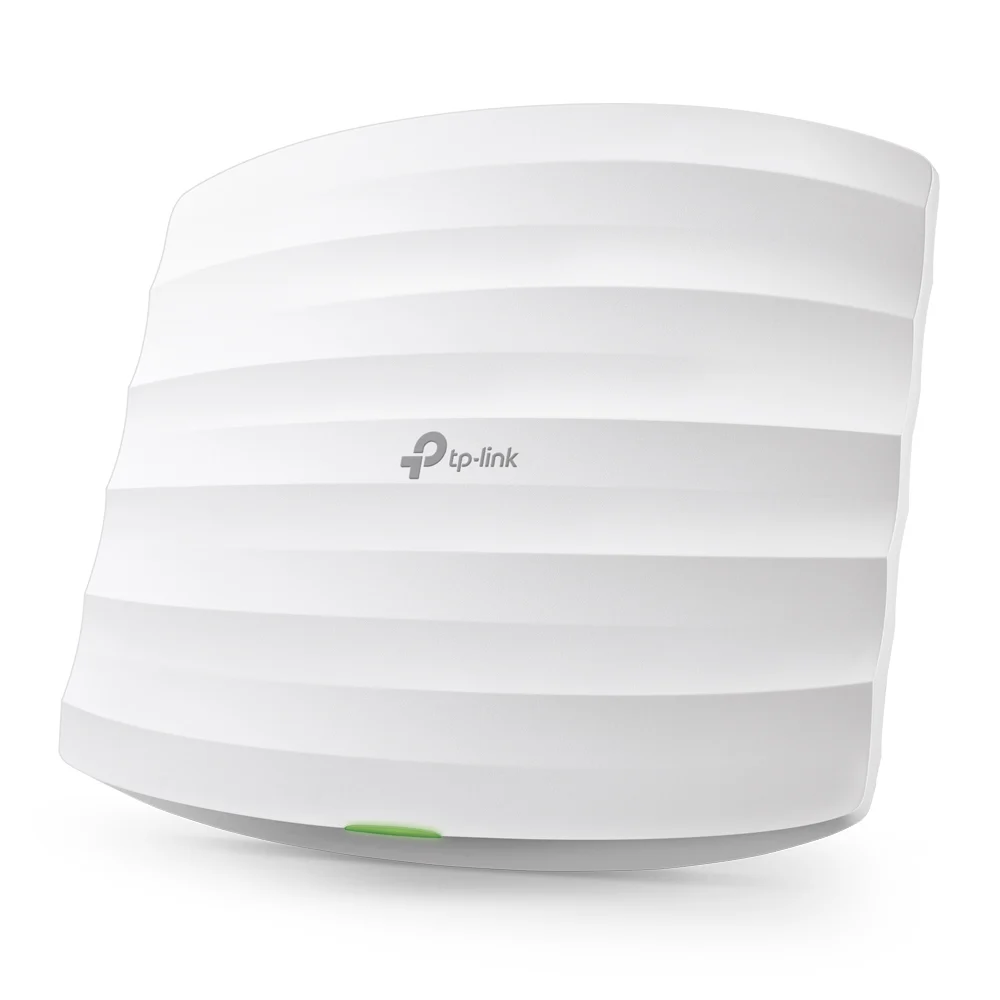

POINTS D’ACCES TP-LINK EAP115 WIFI N300 Mbps PoE – PLAFONNIER (EAP115)

Interface Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）

Bouton Reset

Alimentation PoE or external 9VDC/0.6A power supply

Consommation 2.8W

Dimensions 189.4×172.3×29.5mm

Type d’antenne Internal 2* 4dBi Omni

Montage Ceiling /Wall Mounting (Kits included)

CARACTÉRISTIQUES WIFI

Standards WiFi IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Fréquence 2.4-2.4835GHz

Débit du signal 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Sensibilité de réception 300M: -71dBm@10% PER

150M: -75dBm@10% PER

54M: -78dBm@10% PER

11M: -93dBm@8% PER

6M: -92dBm@10% PER

1M: -96dBm@8% PER

Fonctions WiFi Multiple SSIDs （Up to 8 SSIDs）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control （Adjust Transmit Power on dBm）

QoS(WMM)

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Sécurité WiFi Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Puissance de transmission CE:

<20dBm

FCC:

<26dBm

ADMINISTRATION

Accès Cloud Omada Yes

Omada App Yes

Contrôleur Cloud Omada Yes

Administration Centralisée • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

Contrôleur Logiciel Omada Yes

Accès Cloud Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Contrôleur Logiciel EAP

Alertes Email Yes

DEL ON/OFF Yes

Administration de contrôle d’accès des adresses MAC Yes

SNMP v1,v2c

Journal système local/distant Local/Remote Syslog

Telnet Yes

SSH Yes

Administration par interface WEB HTTP/HTTPS

Administration VLAN Yes

AUTRES

Certification CE, FCC, RoHS

Contenu de l’emballage 300Mbps Wireless N Ceiling Mount Access Point EAP115

Power Adapter

Mounting Kits,

Installation Guide

Système requis Microsoft Windows 10/8/7/Vista/XP

Environnement Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
