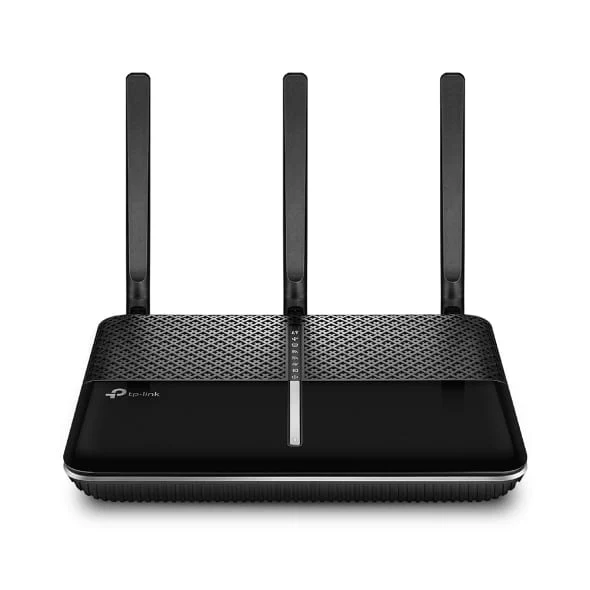

ROUTEUR MODEM TP-LINK ARCHER VR2100

Ports 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port,

1 USB Port

Bouton WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED

On/Off Button

Alimentation externe 12V/1.5A

Standards IEEE IEEE 802.3, IEEE 802.3u, 802.3ab

Standards VDSL2 ITU G.993.2, Up to 35b profile (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

Standards ADSL Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

Standards ADSL2 ITU-T G.992.3 (G.DMT.bis),

Standards ADSL2+ ITU-T G.992.5

Dimensions (LxPxH) 216 × 164 × 36.8 mm

Type d’antenne 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna

CARACTÉRISTIQUES WIFI

Standards WiFi IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Fréquence 2.4 GHz and 5 GHz

Débit du signal 1733 Mbps on 5 GHz, 300Mbps on 2.4 GHz

Puissance de transmission <20dBm (2.4 GHz), <23dBm (5 GHz)

Fonctions WiFi Enable/Disable Wireless Radio, Wireless Statistics

Sécurité WiFi 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2

encryptions

Planification WiFi Support 2.4 GHz and 5 GHz Wireless Schedule

CARACTERISTIQUES LOGICIELLES

Sécurité NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding

Modes opératoires VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router

Administration Web-Based Configuration (HTTP / HTTPS ), Remote management,

Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update

DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Redirection de port Virtual Server, Port Triggering, DMZ, ALG, UPnP

DNS dynamique DynDns, NO-IP, TP-Link

VPN OpenVPN, PPTP VPN, IPSec VPN

Protocoles Supports IPv4 and IPv6

Protocoles ATM/PPP ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over

Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Caractéristiques avancées Parental Controls, Network Address Translation (NAT), Static

Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3

Réseau invité 2.4 GHz Guest Network, 5 GHz Guest Network

VPN IPsec Supports up to 10 IPSec VPN tunnels

AUTRES

Certification CE, RCM, RoHS

Contenu de l’emballage DSL Modem Router

External Splitter

RJ11 DSL Cable

RJ45 Ethernet Cable

Power Adapter

Quick Installation Guide

Système requis Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Subscription with an internet service provider (for internet access)

Environnement Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
