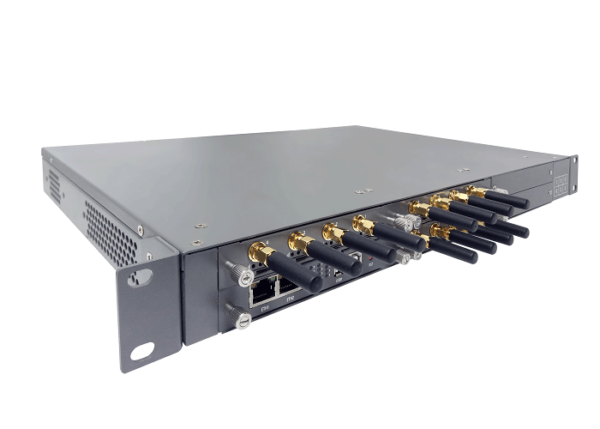

Openvox VS-GW1600 V2 WCDMA Gateway-16

There are three Gateway models with VoxStack series 3G Gateway, the VS-GW1202 series, VS-GW1600 series and the VS-GW2120 series. The Modular Design 3G Gateways are ranging from 4 up to 44 3G/UMTS channels, developed for interconnecting a wide selection of codecs, including G.711A, G.711U, G.729, G.722, G.723, G.726 & GSM. With 3G connection to VoIP gateway,it can quickly reduce telecommunication expenses and maximize cost-savings. With the unique design of the VoxStack Gateway, it can support hot-swap for both SIM cards and 3G gateway modules. Users can simply add or remove the modules for hardware expansion or exchange. Each 3G gateway module runs an independent asterisk system inside.

The VoxStack gateway designs with a Lan Switch board that provides stackability on the hardware upgrade. It supports SMS messages sending and receiving and group sending and SMS to email. The 3G Gateways use standard SIP protocol and compatible with Leading IMS/NGN platform, IPPBX and SIP servers, support most of the VoIP operating platforms such as Asterisk, Elastix, 3CX, FreeSWITCH ,Broadsoft etc.

Technical Specifications:

• 4/8/12/16/20 3G/UMTS Channels
• 1 SIM card per 3G/UMTS channel
• 2 10/100M LAN Interface
• Storage temperature range: -20~70℃
• Operation temperature range: 0~40℃
• Operation humidity range: 10%~90% non-condensing
• Power source: 1U ATX power souce,100-240V/1-2A
• Max Power Consumption: 46W
• Dimension: 44cm × 4.5cm × 30cm
• Weight:
  VS-GW1600：3682g
  VS-GWM400W：251g

Software & Platform:

• Linux
