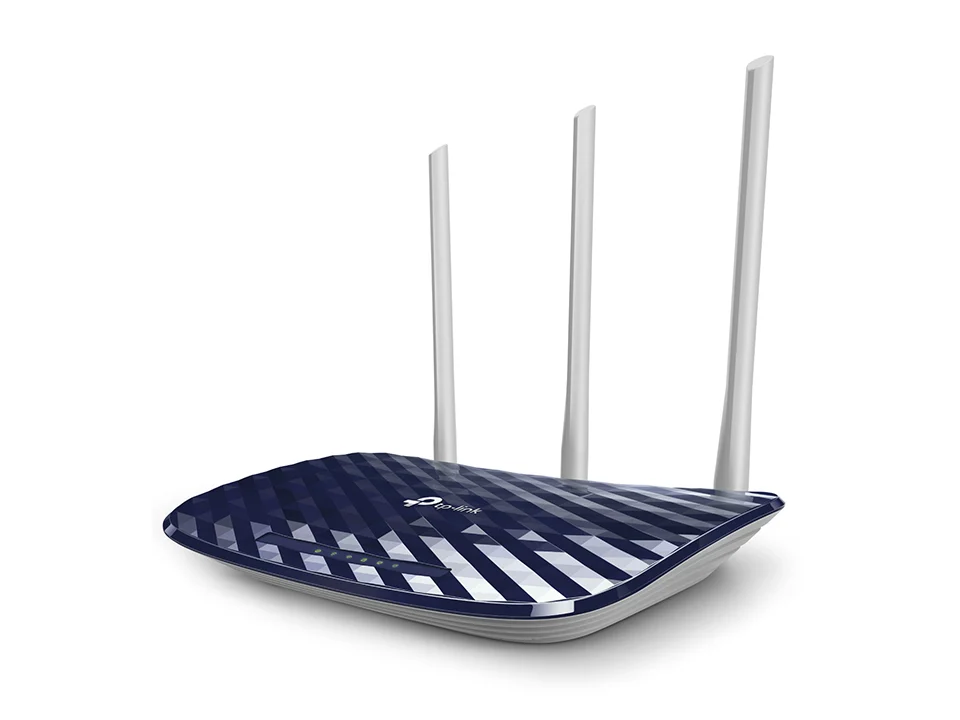

ROUTEUR TP-LINK SANS FIL BI-BANDE AC750

CARACTERISTIQUES MATERIELLES

Interface 4 10/100Mbps LAN ports

1 10/100Mbps WAN port

Bouton WPS/Wi-Fi Button

Reset Button

Power On/Off Button

Alimentation externe 9V/0.6A(EU)

Dimensions (LxPxH) 230 x 144 x 35mm

Antenne 2 × 2.4GHz Antennas

1 × 5GHz Antenna

CARACTÉRISTIQUES WIFI

Standards WiFi IEEE 802.11ac/n/a 5GHz

IEEE 802.11b/g/n 2.4GHz

Fréquence 2.4GHz and 5GHz

Vitesse du signal 5GHz: Up to 433Mbps

2.4GHz: Up to 300Mbps

Sensibilité de réception 5GHz

11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm

11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm,

11n HT20: -71dBm, 11n HT40: -69dBm

2.4GHz

11g 54M: -76dBm

11n HT20: -74dBm, 11n HT40: -71dBm

Fonctions WiFi Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Sécurité WiFi 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

Puissance de transmission CE:

<20dBm(2.4GHz)

<23dBm(5GHz)

CARACTERISTIQUES LOGICIELLES

Qualité de Service QoS WMM, Bandwidth Control

Administration Access Control

Local Management

Remote Management

Redirection de port Virtual Server, Port Triggering, UPnP, DMZ

DNS dynamique DynDns, Comexe, NO-IP

VPN Pass-Through (ne bloque pas un lien VPN) PPTP, L2TP, IPSec

Contrôle d’accès Parental Control, Local Management

Control, Host List,

Access Schedule, Rule Management

Sécurité Pare-feu DoS, SPI Firewall

IP Address Filtering/MAC Address Filtering/Domain Filtering

IP and MAC Address Binding

Protocoles Supports IPv4 and IPv6

Réseau invité 2.4GHz guest network × 1

5GHz guest network × 1

AUTRES

Certification CE, FCC, RoHS

Contenu de l’emballage AC750 Wireless Dual Band Router Archer C20

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Dimensions de l’emballage (LxPxH) 357x223x68mm
